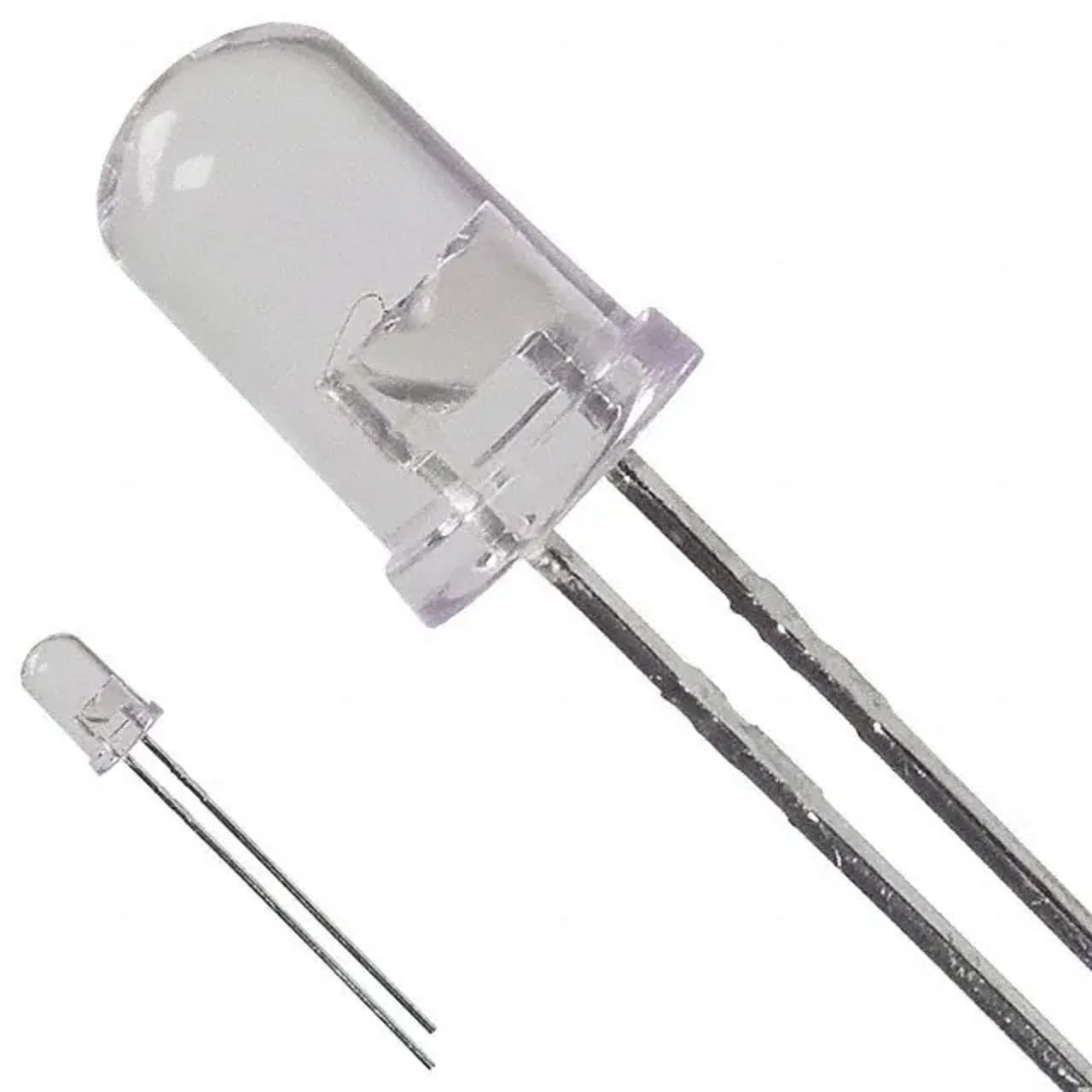

Optoelectronic Device Type: SINGLE COLOR LED
Color: AMBER
Color@wavelength: Orange/Red
Configuration: SINGLE
Forward Current-Max: 0.05  A
Forward Voltage-Max: 2.4  V
JESD-609 Code: e0
Lens Type: CLEAR
Number of Functions: 1
Operating Temperature-Min: -40.0  Cel
Operating Temperature-Max: 100.0  Cel
Overall Height: 8.9  mm
Reverse Voltage-Max: 5.0  V
Shape: ROUND
Size: 5.0  mm
Sub Category: Visible LEDs
T-code: T-1 3/4
Terminal Finish: Tin/Lead (Sn/Pb)
Viewing Angle: 30.0  deg
Additional Feature: CMOS COMPATIBLE
