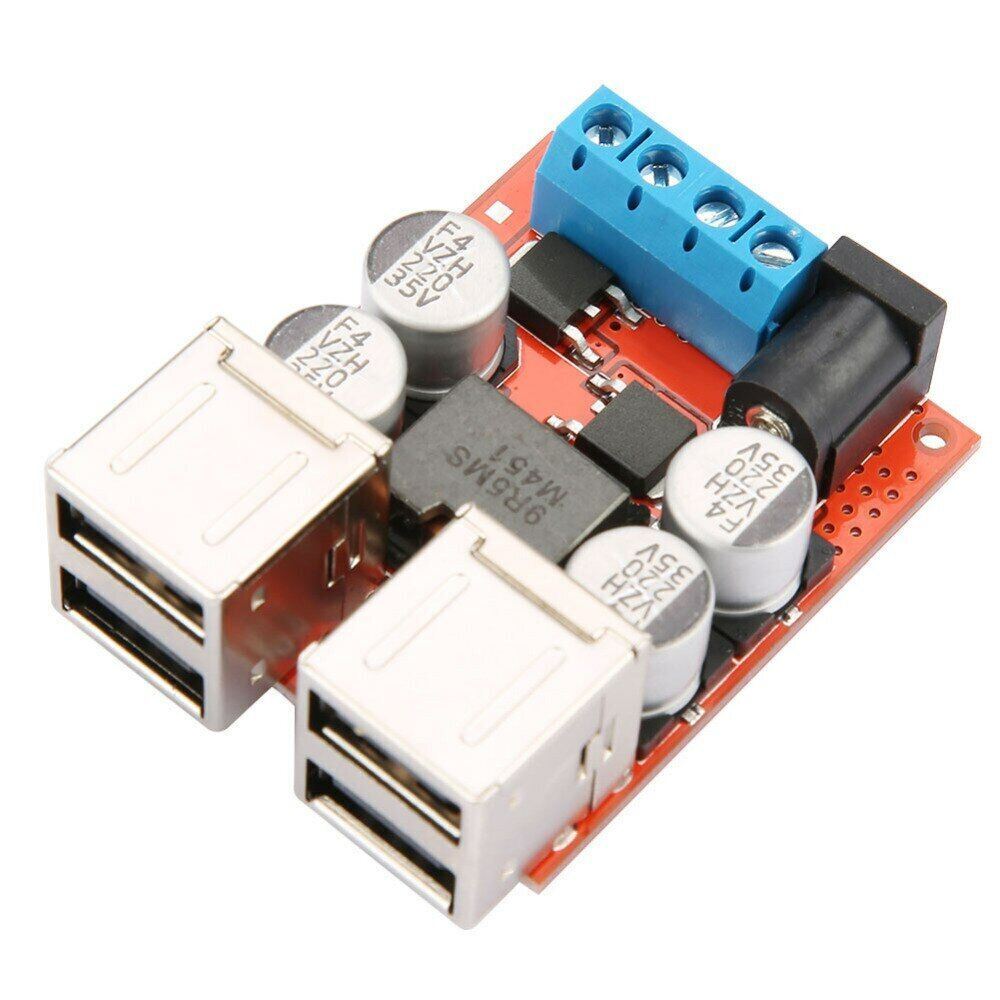

Features:

- Four-channel independent special charging management IC, can effectively support a variety of mobile phones to charge.
- Charging identify IC is compatible for full series of products.
- It supports 4 channel USB to charge in 2A current at the same time, big current and fast charging, the total output current      can be up to 8A.
- Input uses MOS tube reverse connect protection, maximum increases the conversion efficiency and reduces the loss.
- Output has over voltage protection.
- Ultra wide 8-35V input voltage, can perfect support 12V and 24V .
- Synchronous rectification scheme can effectively reduce heat, improve efficiency and highest efficiency can reach 96%.
- Advanced flat choke coil large current inductor, less heat, high conversion efficiency.
- Four high quality SMD capacitors and large capacity MLCC capacitor, lower output ripple.
- High quality double gold plated USB port, the life is 2 times of ordinary USB .
- Support mobile phone, digital camera, tablet computer, navigation, vehicle data recorder and other USB powered             equipment. It can charge 4 mobile phones at the same time, maximum 2A for single USB, total 8A for 4 channels.
- Various types of input and output methods, support terminal input, DC input, output support 4*USB output, terminal output 5V.

Specification:
- Input Voltage: 8-35VDC
- Input Current: 5.5A
- Output Voltage: 5.2V
- Output Current: 8A
- Dynamic Response : 300us (load current change 5%)
- Conversion Efficiency: 95% (12V to 5.2V3.5A measured, efficiency is related to voltage difference and load size)
- Load Regulation: 0.2-0.3% (10%-50% load 12V input measured)
- Ripple & Noise:120mVP-P(20MHz bandwidth 12V 5.2V 3A measured)
- Switching Frequency: 100KHz
- No-Load Current: 18mA(12V car 5V measured)


Weight: 40g / 1.4oz (approx.)
